Grid System

The grid is made up of the following components:

• main - The main shed
  • gutterRight - Gutter wall sections
  • gutterLeft - Gutter wall sections
  • gable - Gable wall sections
  • roofRight - Roof sections
  • roofLeft - Roof sections
• awningRight - Right awning
  • gutter - Gutter wall sections
  • roof - Roof sections
  • gable - Gable wall sections
• awningLeft - Left awning
  • gutter - Gutter wall sections
  • roof - Roof sections
  • gable - Gable wall sections

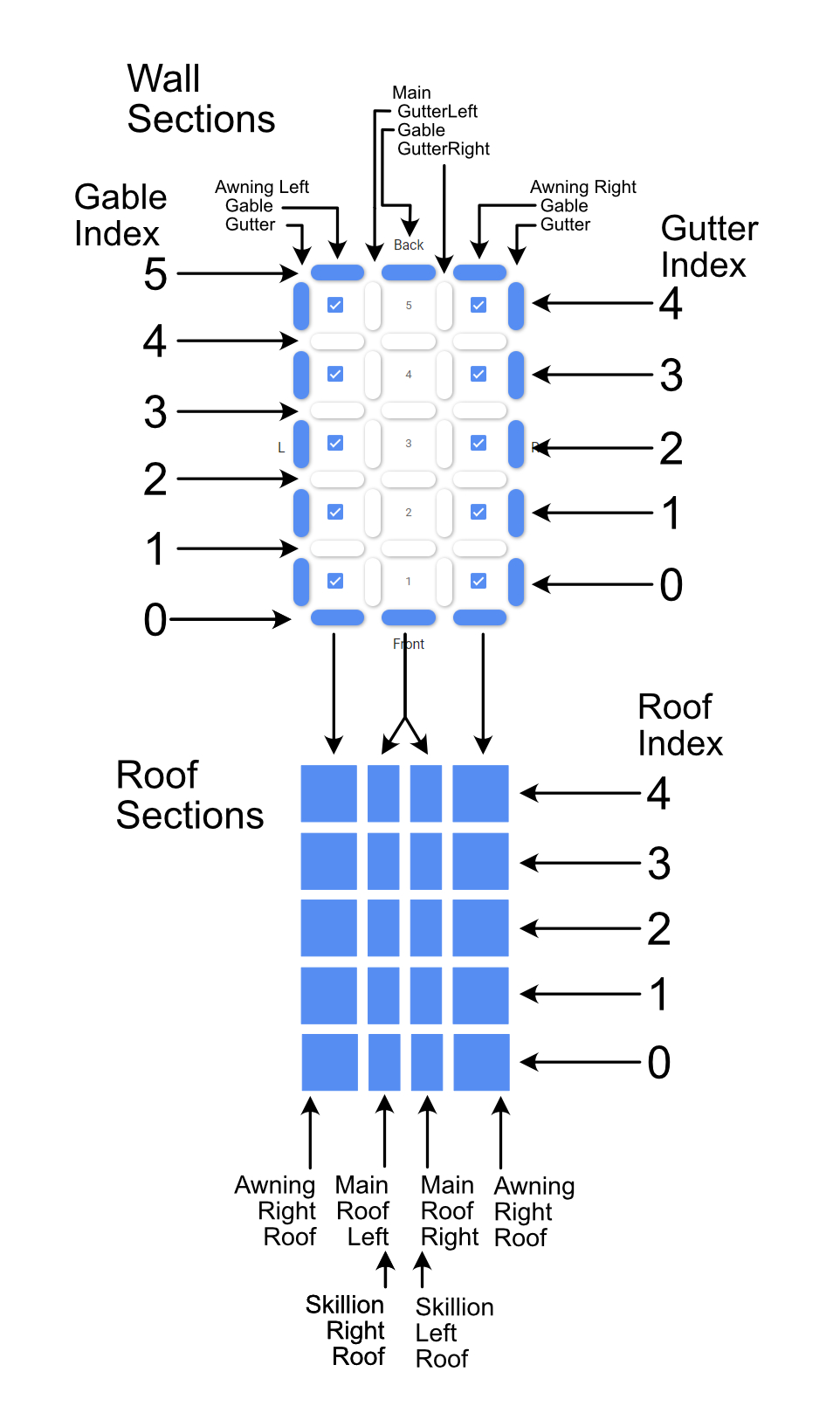

The following diagram represents this:

Wall Section Example

{
    "visible": true,
    "models": [
      {
          "type": "Roller Door",
          "alignmentX": "Right",
          "height": 1.2,
          "width": 1.2
      },
      {
          "type": "Roller Door",
          "alignmentX": "Left",
          "height": 1.5,
          "width": 1.5
      },
      {
        "type": "PADoor",
        "alignmentX": "Center",
        "doorWidth": 870,
        "doorHeight": 2030
      },
      {
        "type": "Window",
        "alignmentX": "Right",
        "windowWidth": 816,
        "windowHeight": 790
      }
    ]
}

Roof Section Example

{
    "models": [
        {
            "type": "Skylight",
            "alignmentX": "Center"
        },
        {
            "type": "Skylight",
            "alignmentX": "Left"
        },
        {
            "type": "Skylight",
            "alignmentX": "Right"
        }
    ]
}
